Model No.:SRW-SGMP6

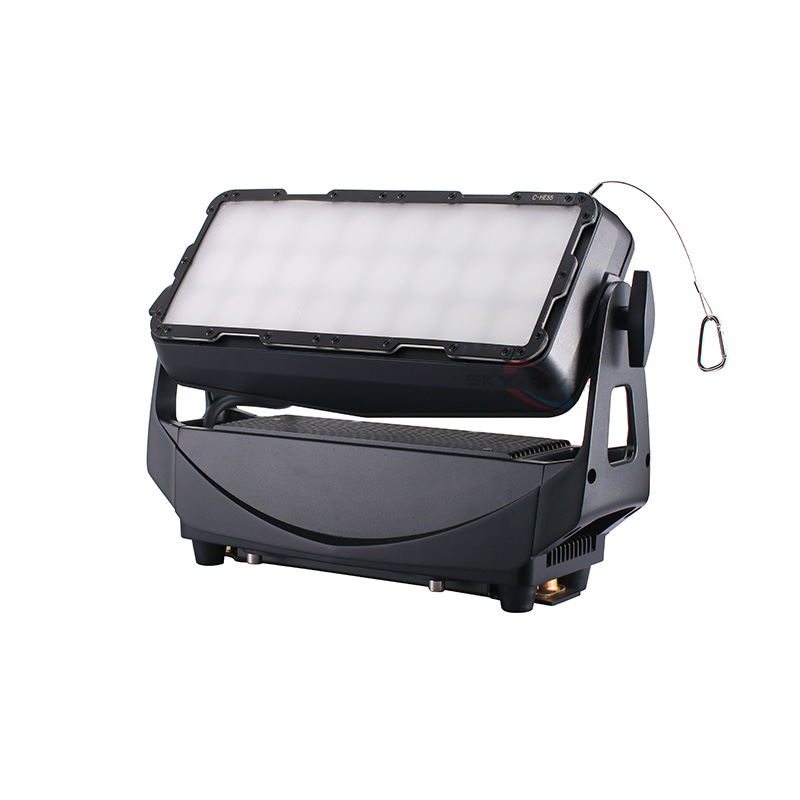

IP65 24PCS 20W 6 Segments Control Wall Washer Light

Power: 600W

Input Voltage: AC100-240V 50/60Hz

Light Source

Source: 24X20W 4-IN-1 RGBW LEDs

Flicker free operation for broadcast TV and FILM

Life Span: 50,000 hours

The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

Optics

24PCS high efficiency acrylic lens

5°/10°/15°/25°/40°/15°x40° Lens optional

Magnetic diffuser / frost filter (optional)

Magnetic 8 way barndoors (optional)

Colors

6 Segments controllable individually

Sophisticated 4 colors RGBW mixed

Even and soft light

coverage with pure mixing

Preset color macros

Strobe Effect

0-25Hz high speed shutter/strobe effect with variable speed

Dimming System

0-100% Smooth linear LED dimming

Smoother dimming mode available

Control System

8 / 13 / 16 / 21 / 25 / 40 /S3 / S4 / S6 RAW / S6 Default / S8 / S9 / S10 / S18 / S21 Strobe / S24 / S26 / S27 / S21 Studio / S40 / S25 / S35 / S22 ChsDMX channels

DMX512, RDM, Master-slave, Auto, W-DMX (optional)

Multi preset internal programs

Display System

1.77" TFT LCD display

English/Chinese menu

4 control touch buttons

180°Reversible for LCD display

Display auto OFF

Cooling System

Active, Forced Air, Temperature regulated

Over temperature protection management

Housing

Aluminium, steel, plastic PC/ASA, rubber, Lens PE and tempered glass front

Tilt angle manually adjustable

Two side handles on base

Exterior finish: Black

Installation

2*1/4 turn fastening Omega Clamps

1*Safety attachment point

Operating Condition

Operating positions:

all (device on floor or fixed to a support)

-25° to 45° ambient temperature

IP65 protection rating

Shielded input signal protection for stable signal without interference

Seetronic IP65 3-Pin or 5-Pin XLR connectors IN/OUT

Seetronic IP65 PowerCON TRUE1 IN/OUT

Weight

N.W.: 6.6kg

Dimensions

Product Dimensions: 420(D)*140(W)*265(H)mm
